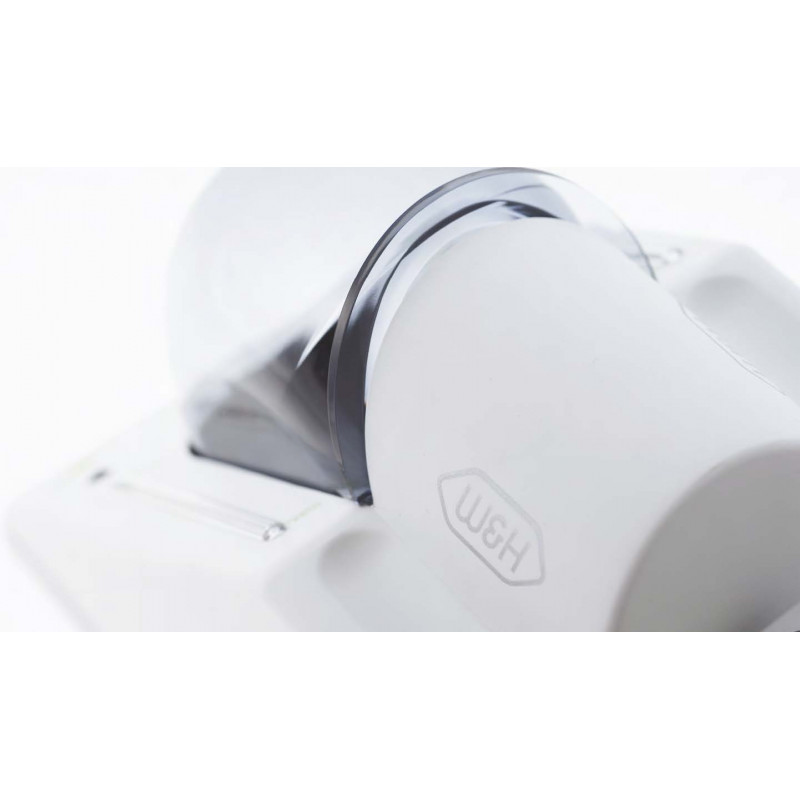

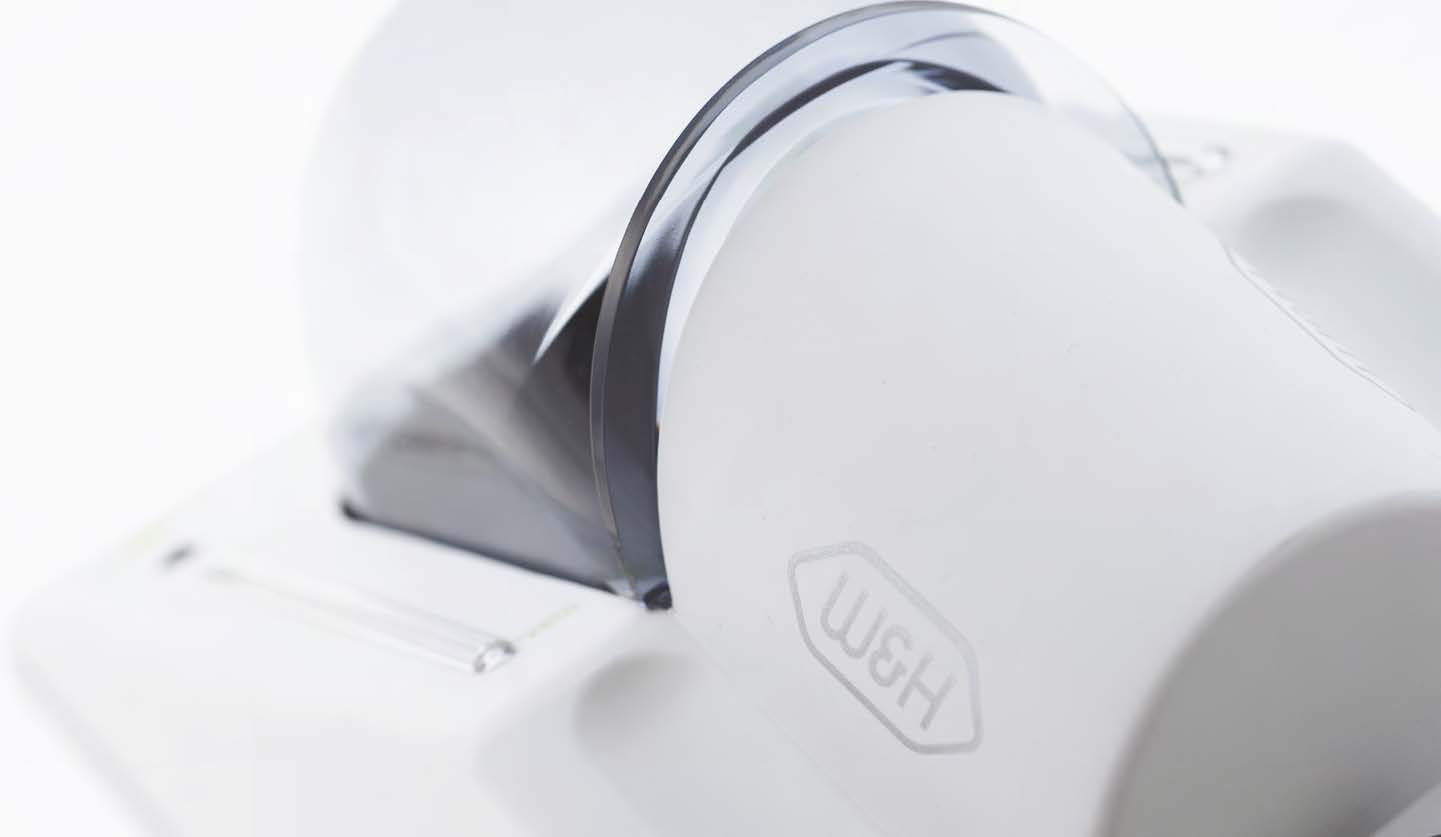

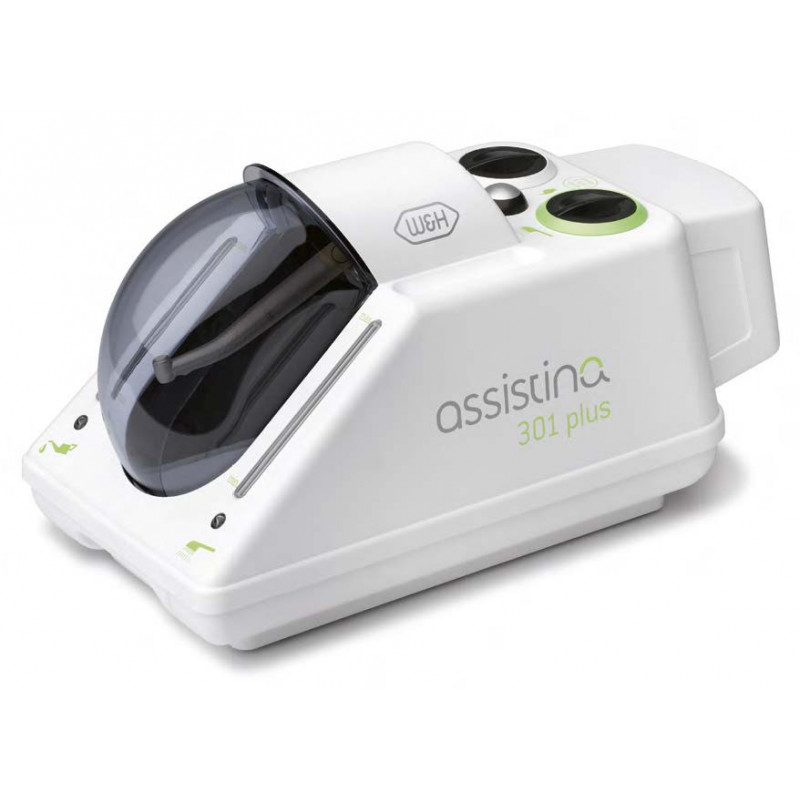

Maintenance unit Assistina 301 PLUS

Write a review

€1,658.00

Tax excluded

Maintenance of rotary instruments in perfect condition with ASSISTINA 301 PLUS, provide cleaning and lubrication.

One button and automatic maintenance done, only 35 seconds for the instrument to be dry and in perfect conditions.

Advantages

Cleaning and lubrication of internal parts with lubricating oil
Cleaning of the spray ducts (water and air) with detergent
Drying with compressed air

Push the button and automatic maintenance is done

For automatic internal cleaning and lubrication of
turbines,
air micromotors,
air scalers,
as well as surgical handpieces and
contra-angle handpieces.

Simple and efficient
Extend the service life of your instruments
Lubrication of internal parts with W&H Service Oil F1
Cleaning of spray lines (water and air) with W&H cleaning fluid
Drying with compressed air
12 months warranty

Automatic rotary lubrication ensures
the best distribution of the oil
forming a homogeneous lubricating film.

Only 35 seconds and instruments are dry and in perfect conditions

The maintenance programe lasts about 35 seconds and is suitable for all types of products.

Turbines W&H with quick coupling

Turbines with standard 4-way connection

Turbines with 2- or 3-way Borden connection and air spray connection to the propellant air

Other turbines with quick coupling

Technical data

Assistina	301 plus
Adapter for fixed turbines or adapters with 4-way fixed connection

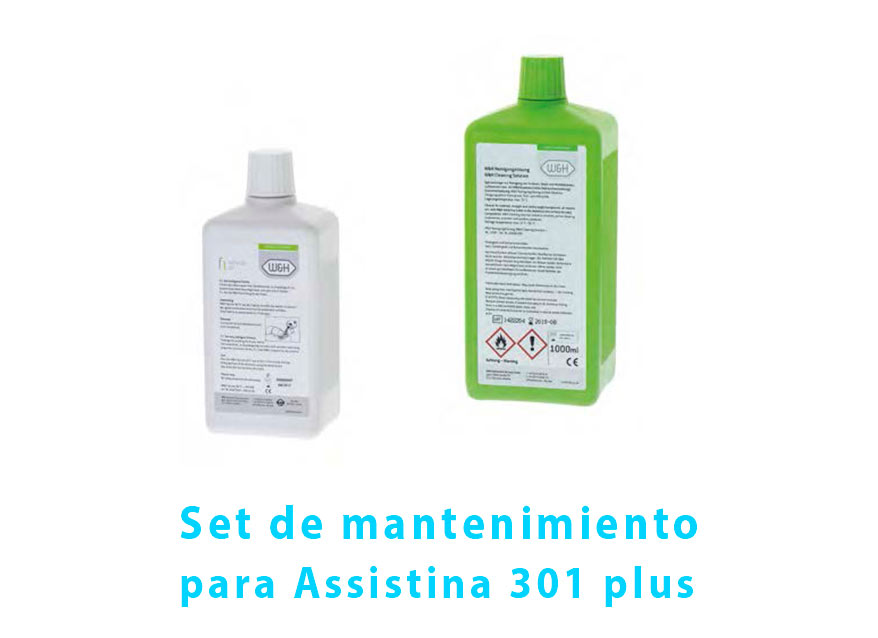

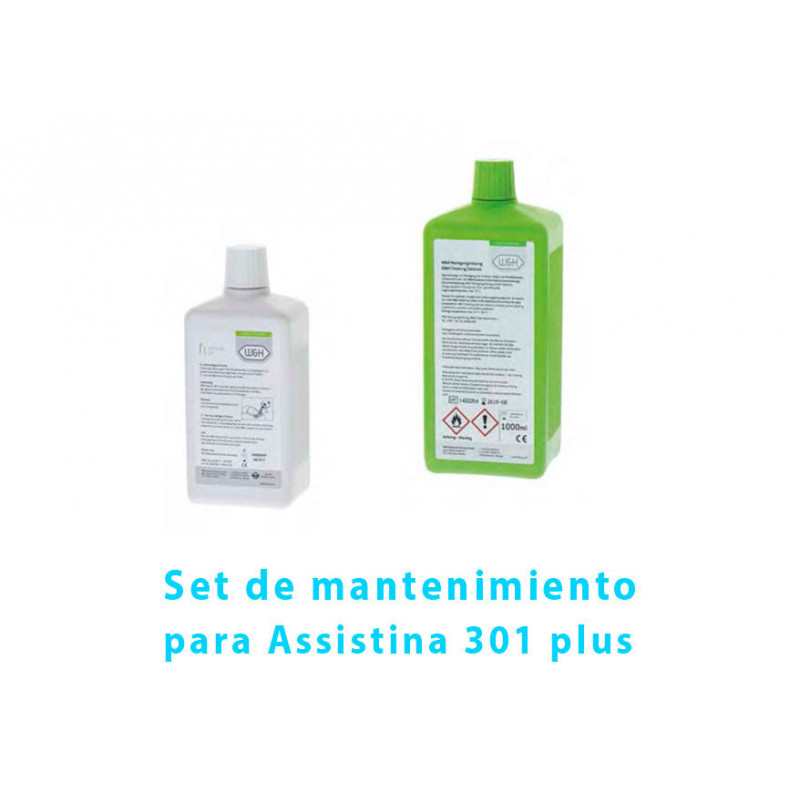

Includes lubricating and cleaning fluids for 7,000 cycles
Cleaning fluid W&H 1000 ml
Service F1 Oil W&H 500 ml
Air consumption:	60 Nl/min approximately
Operating pressure:	4 - 10 bar (regulation via the integrated automatic pressure regulator)
Maximum sound volume:	63 dB
Height \| width \| depth:	223 mm x 190 mm x 415 mm
Weight:	2,7 kg
Filling level:	250 ml Cleaning fluid W&H, MC-1000 250 ml Service Oil F1 W&H, MD-500
Suitable for:	Handpieces and contra-angle handpieces, turbines, air micro-motors and compressed-air driven descalers
